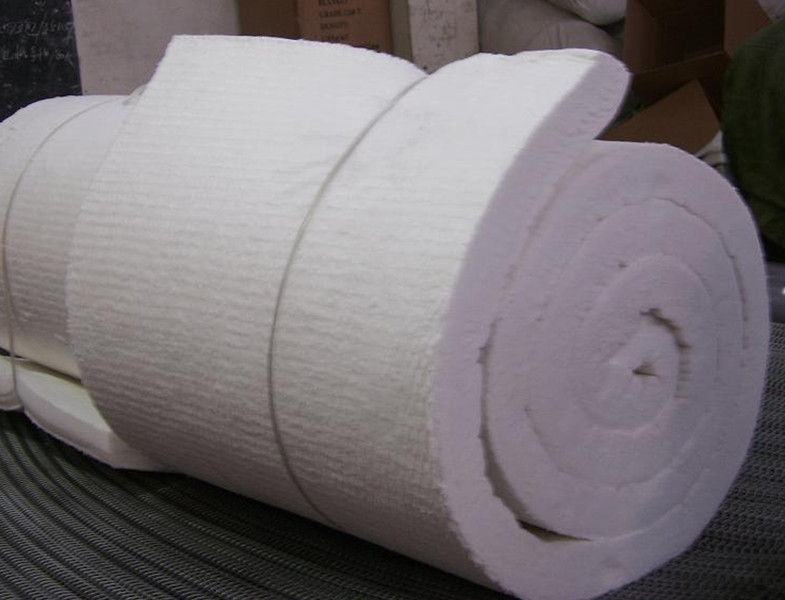

Izvanredan visokotemperaturnootporni materijal – klasifikacioni temperaturni razredi T=1260°C i T=1450°C.
Napravljen je od keramičkih vlakana fi 2 – 4 mikrona.

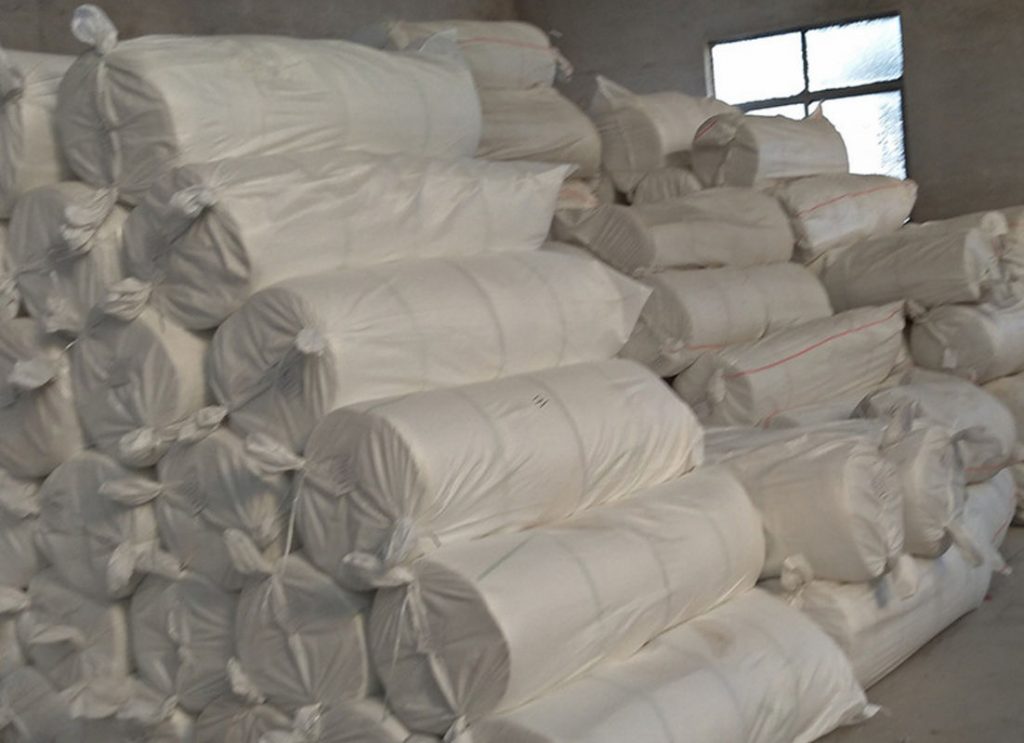

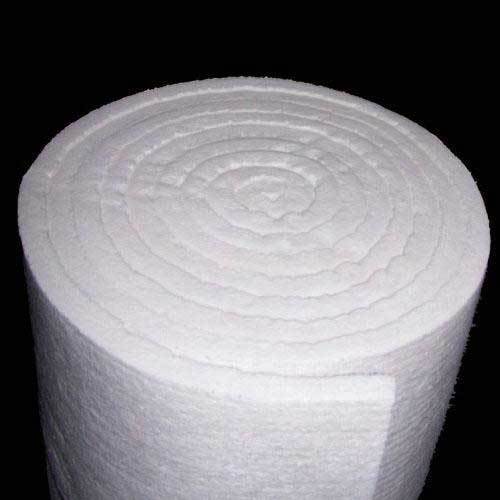

Dimenzije i debljine: 13x610x14400mm , 25x610x7200mm,50x610x3600 u rolnama

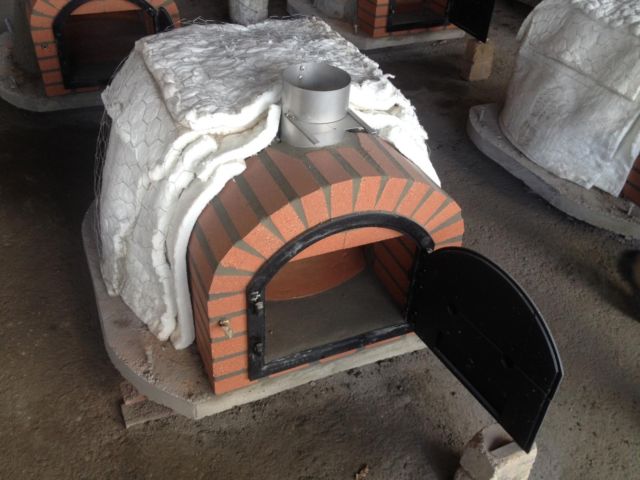

Dobar je kako temperaturni, tako i zvučni izolator, što mu povećava raspon primjene.
TEHNIČKI PODACI
|
1. Typical chemical analysis: Al2O3 + ZrO2 (%) SiO2 (%) SiO2 |
45 – 48 51 – 52 |
| 2. Clasification temperature: (°C): | 1260°C |
| 3. Max. continuous temperature |
1050 – 1150°C |
|
4. Linear shrinkage (%) 24 hours. At 1260°C |
max. 3 |
| 5. Organic inclusions (%): |
max. 0,05 |
| 6. Moisture content(%): |
max. 0,5 |
|
7. Thermal conductivity (W.m-1.K-1):
400 °C 600 °C 800 °C 1000 °C | 0,099 0,160 0,190 0,220 |
|
1. Typical chemical analysis: Al2O3 + ZrO2 (%) SiO2 |
52 – 55 45 – 47 |
|
2. Clasification temperature: (°C): | 1400°C |
|
3. Max. continuous temperature |
1200 – 1350°C |
|
4. Linear shrinkage (%) 24 hours. at 1260°C |
max. 3 |
|
5. Organic inclusions (%): |
max. 0,05 |
|
6. Moisture content(%): |
max. 0,5 |
|
7. Thermal conductivity (W.m-1.K-1): 400 °C 800 °C 1000 °C | 0,095 0,160 0,210 |
